Flexible Busbar Conductive Connection Piece Copper Foil Soft Connection
Product Description
Our company is a manufacturing enterprise that can mass produce special copper braided wire, copper wire flexible connection, copper foil flexible connection, electrical soft copper stranded wire and other products.
The copper foil laminations are pressed together, molecular diffusion welding is used, and high current heating and pressure welding is used to form.
Material: High quality 0.05~0.3mm thick copper foil.
The process flow of copper strip soft connection
standard material selection → mold making → blanking → cleaning and stacking → pickling → surface treatment → heat preservation → smelting → sawing and burr cleaning → drilling → surface polishing → conductive surface tin plating → shaping →Packaging →Storage
Parameter table
| Name | Copper foil flexible mother |
| Category | Precision stamping parts and soft connections |
| Key words | Ribbon Battery MaterialSolder, Soldering Paste |
| Applicable | Battery pack electric vehicle charging pile new energy industry |
| Monolithic thickness | Monolithic thickness |
| Surface | Tin plated, Nickel plated, Silver plated |
| Characteristic | High conductivity |
| Insulation material | flame retardant heat shrinkable tube |

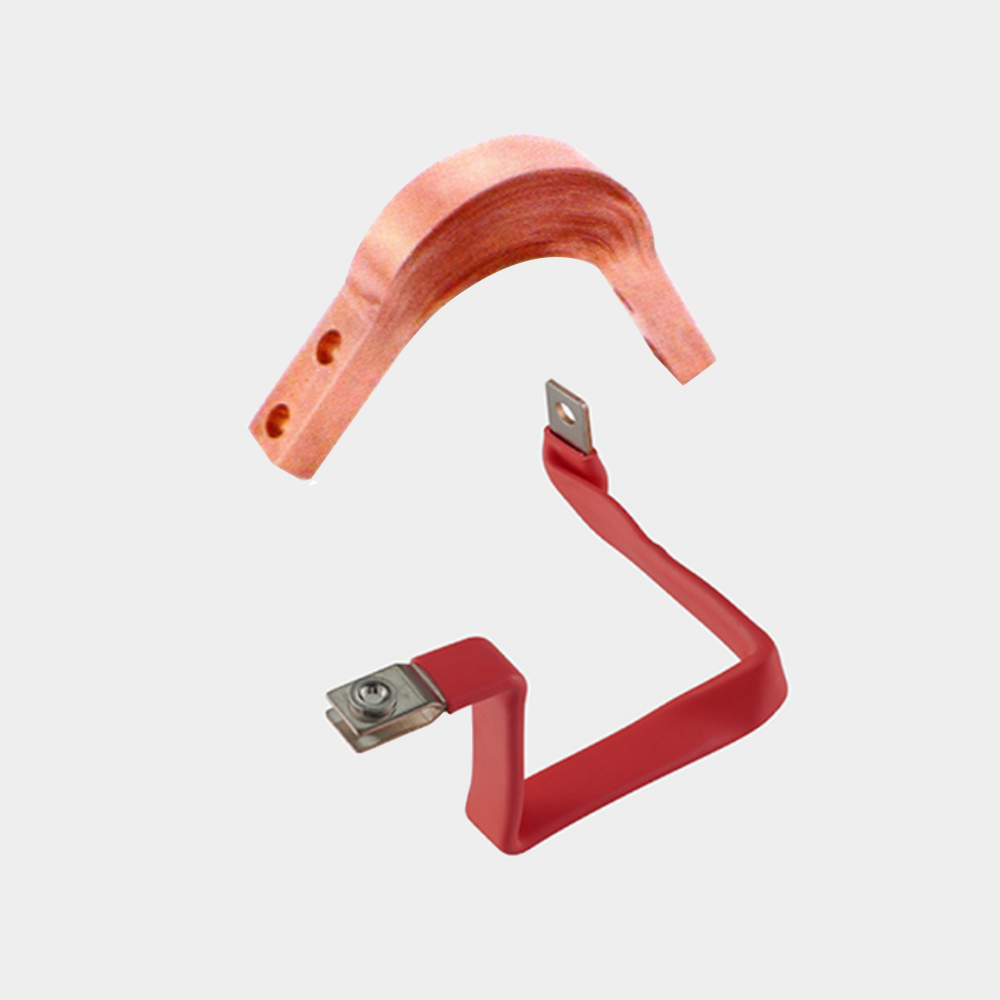

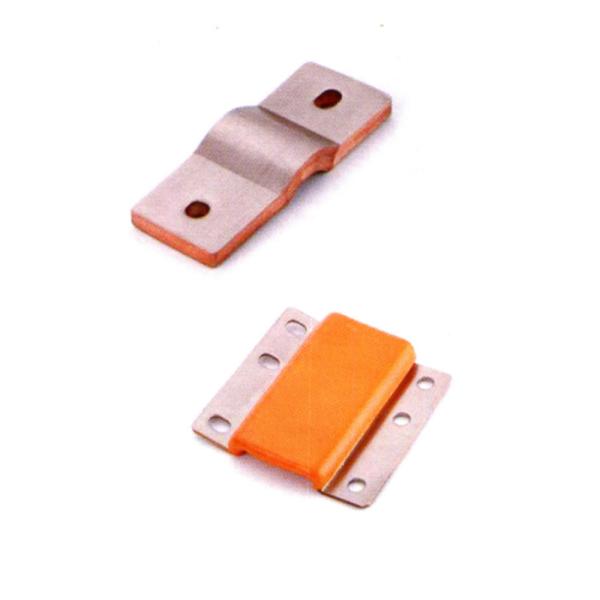

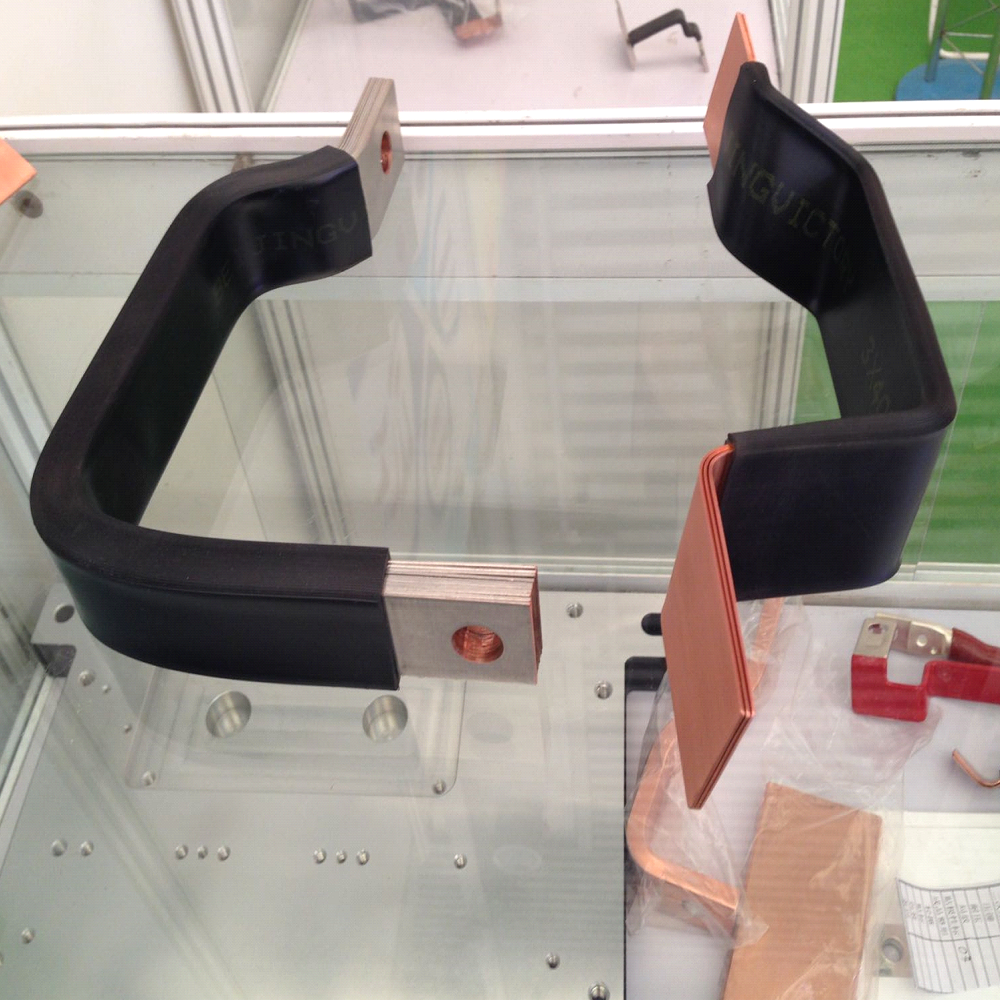

Product display
Advantage
Using copper busbars, customers can eliminate wiring errors and reduce assembly costs.
Applicable
- Copper busbars are used in the new energy industry of battery pack electric vehicle charging piles.
- It is widely used in high and low voltage electrical appliances, vacuum electrical appliances, high and low voltage switch cabinets, electric welding machines, automobiles, electric locomotives, electric furnaces, mine explosion-proof electrical appliances, generator sets, and flexible connection of carbon brush wires.
Function
It has a good flexible and conductive function, and eliminates the poor conductivity of the battery pack caused by the loosening of fasteners due to vibration during the operation of the car. At the same time, the insulating layer can slow down the oxidation and corrosion of the internal copper foil and meet the insulation requirements between electrical components.
Packaging and Shipping
Packing Details : Carton and wooden box packaging
Delivery Details : 5-10 days(Negotiated and decided on a case-by-case basis)
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Is the product in stock?
Generally, for conventional copper foil raw materials, we will carry out a large amount of stocking, so although you can place an order with confidence, there is no need to worry about whether the raw materials are sufficient, and we will arrange production for you as soon as possible.
5. What should I do if there is a problem with the goods received?
If you find a problem with the product, please be sure to let us know within 24 hours. Whether it is a logistics problem or a product quality problem, we will reply you within one working day.
If you have another question, pls feel free to contact us
